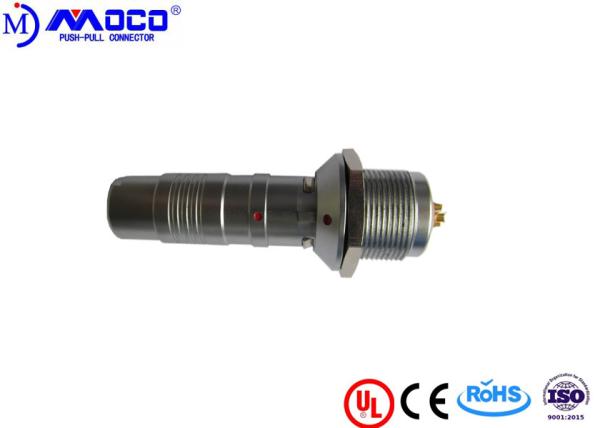

M14 9 pin female and male outdoor cable waterproof circular connectors

Main features:

- Push pull slef latching system;

- Solder or print contacts(straight or elbow);
- Multiple key options to avoid confusion;
- Keying system for connector alignment;

- Watertight connection(IP66-IP68);

- 360° screening for full EMC shielding.

K series connectors are designed for out door applications. All models of this series are watertight when mated to give a protection degree IP68 when correctly assembled to an appropriate cable(at least IP66)..

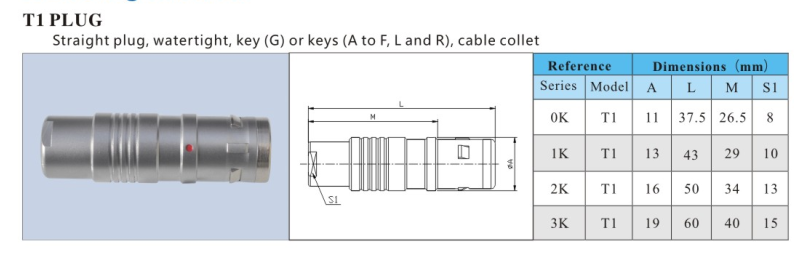

K series T1 is a standard straight plug.

Z1 is fixed socket, watertight, nut fixing, panel mount.

Dimensions and Parameters

Packaging Information:

Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!

   Shenzhen MOCO Interconnect Co., Ltd is a high-tech enterprise with nearly a decade experience of developing, designing and manufacturing push-pull self-locking connectors. With a number of authoritative patents, MOCO can supply eco-friendly, high quality connectors and best cable assembly solutions for you.

    With 1500 square meters premises for research & development and production. Under the excellent  management and great efforts of innovation for many years by MOCO team, we have developed a lot of popular products suah as precision circular push-pull connector and YLH connector. MOCO connectors are of stable performance and attractive appearance which are interchangeable with international brands, widely used in the fields of measurement, medical, audio-video, military, navigation, security, aviation, industrial control, automotive and power etc.

     We have got 6 utility patents and 6 design patents, and passed on UL, CE, RoHS & ISO9001:2015 certification. MOCO is to serve both old and new, domestic and overseas customers in a better way.

      MOCO---your reliable cooperator.
