    6 Pin Industrial Circular Connectors Metal HRS HR10A-7P-6P / HR10A-7R-6S

    Ask Lasest Price
    Brand Name : MOCO
    Model Number : HR10A-7P-6P HR10A-7R-6S
    Certification : UL/CE/RoHs/ISO9001
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 200000pcs/month
    Delivery Time : 7-10 working days after simple confirmation
    • Product Details
    • Company Profile

    6 Pin Industrial Circular Connectors Metal HRS HR10A-7P-6P / HR10A-7R-6S

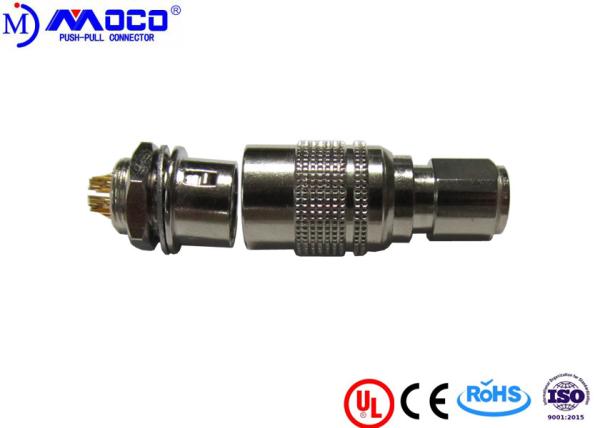

    HRS HR10A-7P-6P and HR10A-7R-6S industrial circular connectors

    Features:
    - Smart push-pull system, easy and quick connect and disconnect;
    - Five-key system for connector alignment allows blind mating;
    - Miniature structure for space-savings
    - Fully compatible with hirose connectors.

    These miniature push-pull connectors offer light weight and high reliability and durability. They are most suitable for portable electronic equipment, such as computers and peripherals, medical equipment, audio/video equipment, portable radio(wireless) apparatus, measuring equipment, etc


    HR connectors is usually used in industrial device, and we also provide cable assemblies service .


    MOCO P / NHRHR10A-7P-6P HR10A-7R-6S
    Insert6 low voltage
    ConfigurationBrass (gold plated)
    InsulatorPPS
    Endurance (Shell)5000 mating cycles
    Temp (min)-40 deg
    Temp (max)200 deg C
    Humidity (max)<=95% [at 60 deg C / 140 F]
    Vibration15 g [10 Hz - 2000 Hz]
    Shock Resistance100 g [ 6 ms]
    Salt Spray Corrosion>144 hr
    IP Rating50
    Shielding (min)75 dB (10 MHz)
    P op (max)60 bar (870 psi)

    We also provide cable assemblies services!

    If you have any interests, please feel free to contact us!

    Contact us today, we are looking forward to serving you!
